性能簡介CHARACTERISTICS

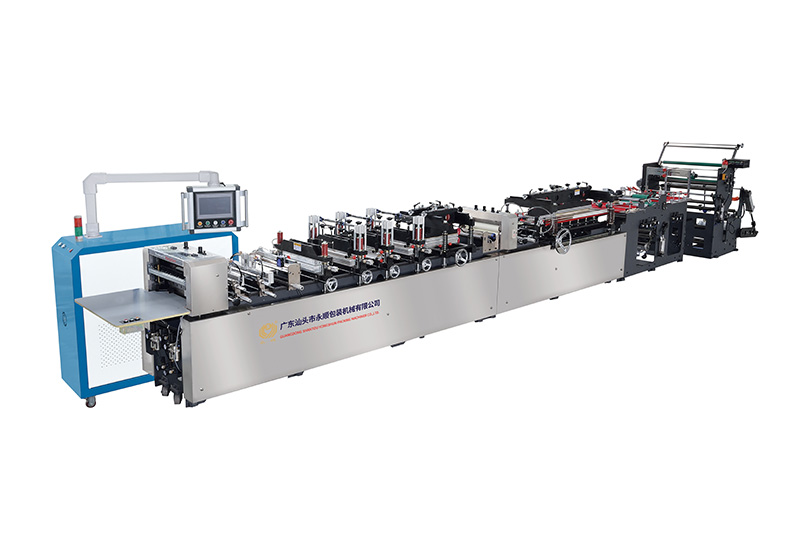

采用電腦控制兩伺服電機定位,主電機變頻調速,放料雙電眼自動糾偏,后送料變頻自動送料,后送料自動上料。配用可移動固定切刀,可微調切刀前后、斜度位置。配有收料輸送裝置。具有自動計批計數、靜電消除、邊料處理,壓輥、張力采用氣動控制。具有倍送、高位停機、跟蹤錯位停機、料完報警停機等功能,精度高、速度快、制袋平整、雅觀,是制作塑料復合袋的理想設備。
項目·ITEM
|
400型·TYPE400
|
500型·TYPE500
|
600型·TYPE600
|
材料
Material
|
各種復合塑料膜
All Kinds Of Laminated Plastic Film
|
各種復合塑料膜
All Kinds Of Laminated Plastic Film
|
各種復合塑料膜
All Kinds Of Laminated Plastic Film
|
原料尺寸(******)
Material size(maximum)
|
840×φ800mm
|
1040×φ800mm
|
1240×φ800mm
|
膜料厚度
Film Thickness
|
0.04-0.18mm
|
0.04-0.18mm
|
0.04-0.18mm
|
封切速度
Speed Of Sealing & cutting
|
40-160pcs/min
|
40-160pcs/min
|
40-160pcs/min
|
最高線速度
Maximum Linear Speed
|
35m/min
|
35m/min
|
35m/min
|
倍送
Multiple Conveying
|
超過380mm
Over 380mm
|
超過380mm
Over 380mm
|
超過380mm
Over 380mm
|
整機功率
Power Of Whole Machine
|
約20kw
About 20kw
|
約23kw
About 23kw
|
約26kw
About 26kw
|
控制系統
Control System
|
PLC控制系統
PLC Control System
|
PLC控制系統
PLC Control System
|
PLC控制系統
PLC Control System
|
牽引裝置
Driving Device
|
兩伺服電機牽引系統
Dual-servomotor Driving System
|
兩伺服電機牽引系統
Dual-servomotor Driving System
|
兩伺服電機牽引系統
Dual-servomotor Driving System
|
放料結構
Material-feeding Structure
|
自動上料裝置
Automatic feeding the material device
|
自動上料裝置
Automatic feeding the material device
|
自動上料裝置
Automatic feeding the material device
|
制動裝置
Brake Device
|
恒張力編碼器磁粉控制系統
Constant Tension Encoder Magnetic-power Control System
|
恒張力編碼器磁粉控制系統
Constant Tension Encoder Magnetic-power Control System
|
恒張力編碼器磁粉控制系統
Constant Tension Encoder Magnetic-power Control System
|
溫控系統
Temperature Control System
|
內置PID
Internal Structure PID
|
內置PID
Internal Structure PID
|
內置PID
Internal Structure PID
|
供選部件
Optional Parts
|
放料后叉邊成形裝置
Feeding unit adopts inserting shaping device
|
放料后叉邊成形裝置
Feeding unit adopts inserting shaping device
|
放料后叉邊成形裝置
Feeding unit adopts inserting shaping device
|
可制作袋樣
Bags that can be produced
|
中封袋
Center-seal Bag
插邊中封袋
Center-seal gusset Bag
|
可供選機頭
Optional feeding device
|
放料后叉邊成形裝置
Feeding unit adopts inserting shaping device
|
